Full automatic pyramid/flat nylon tea-bag packing machine

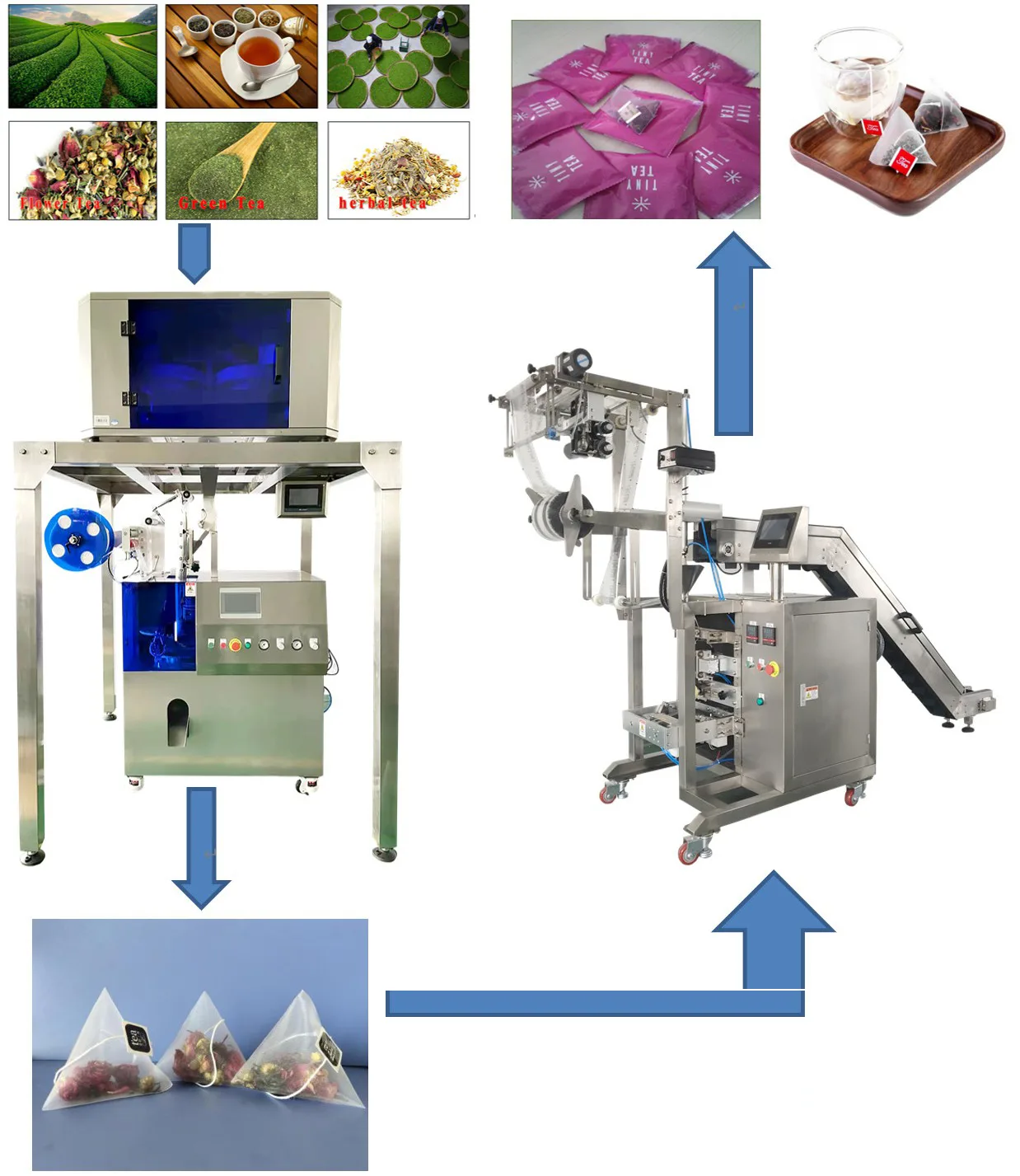

Flow chart
Main features:
Ultrasound sealing, make the tea bag beautiful.
- 1Ultrasound sealing, make the tea bag beautiful.
- 2The normal capacity can reach 2400-3200bags/hour.
- 3The material with tag can make the tea bag with tag.
- 4Slip volume measurement can change the infilling easily.
- 5According to customer's tea to choose electronic scale.
- 6Electric components adopt Germany Schneider.
- 7PLC controller, touch-screen system, both are international famous brand, make the performance more stable, easy to operate, more humanity.
Technical parameters
Model | JLS-100SJ-6DW |
|---|---|
Weighing range | 1-10g |
Accuracy | ±0.3g varied by different materials |
Weighing mode | 6 pcs of rotary bowls |
Packing speed | 30-45bags/min |
Sealing mode | Inner bag: Ultrasound sealing (three side triangle or four side) Outer bag: heat sealing(three side or pillow sealing) |
Bag size | Inner bag: 140mm (56*58 mm) 160mm ( 65*68 mm) Outer bags: 90-150mm long, 90-120mm wide |
Bag materials | Inner bag: Ultrasonic sealing materials: nylon mesh, non-woven fabric, corn fiber etc. Outer bag: available for heat sealing: PE/PP/PET/Aluminum etc. |
Roll width | Inner bag: 140 mm 160 mm , Outer bag: 160mm 180mm |
Roll quantity | 2 rolls |
Roll outer dimension | Inner bag≤ Φ 400 mm, Outer bag≤ Φ 300 mm |
Paper roll diameter | Φ 76 mm |
Operator | 1 person could monitor 3-4 sets of packing line |
Air | ≥ 0.6 Mpa |
Power | 220V/50hz/single phase, about 2.8 Kw |
Dimension | 4500 x 1500 x 2400 mm LxWxH |
Weight | 800 Kg |
