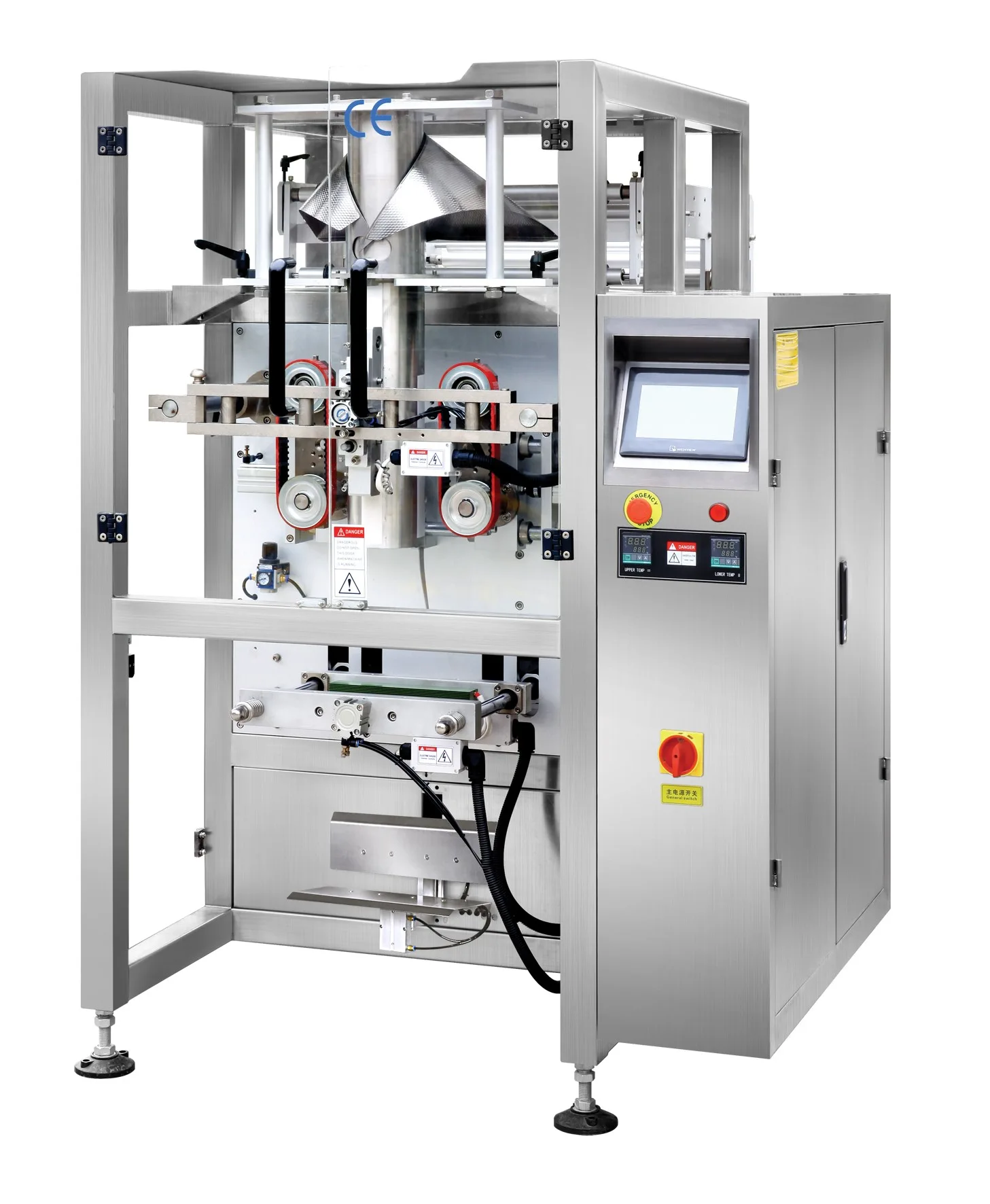

JLS-420F Automatic vertical packing machine
Mechanical details

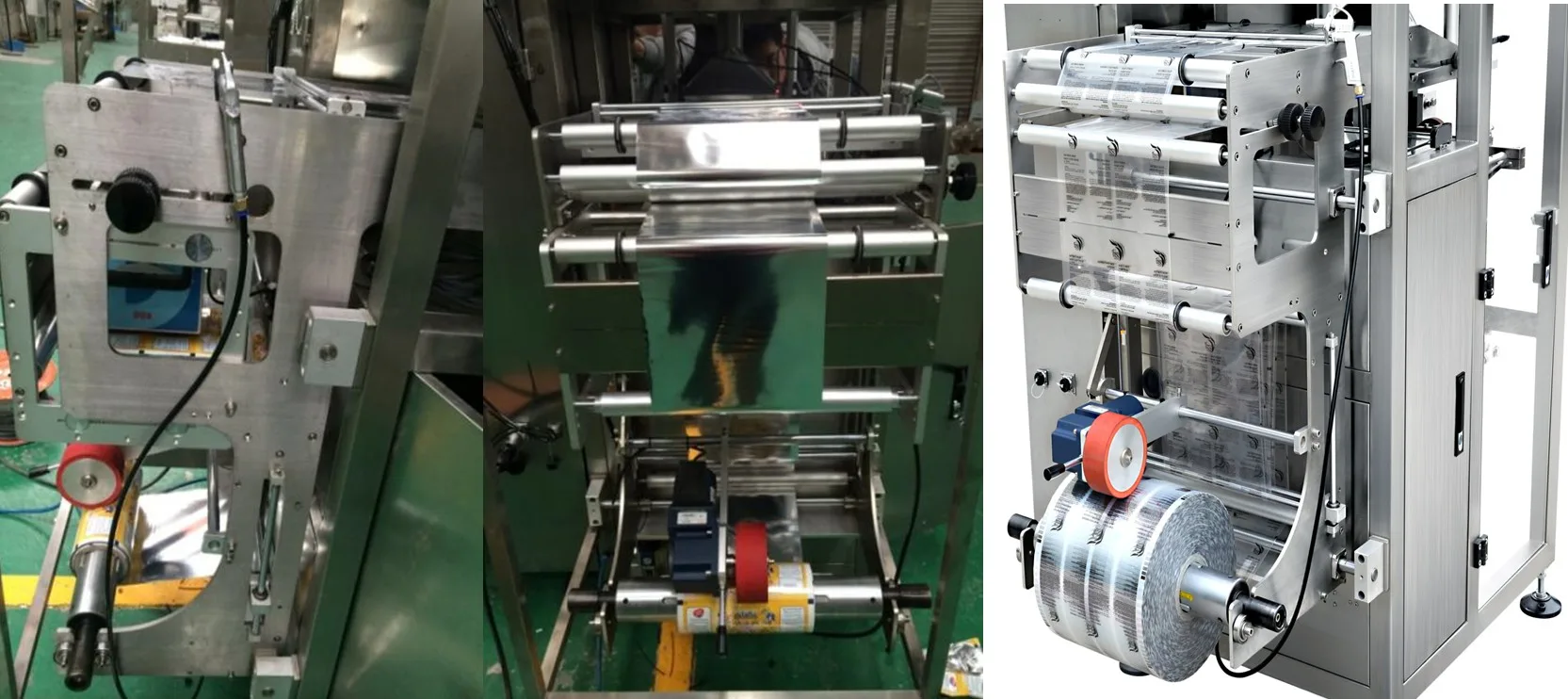

Film stretching structure is made in stainless steel

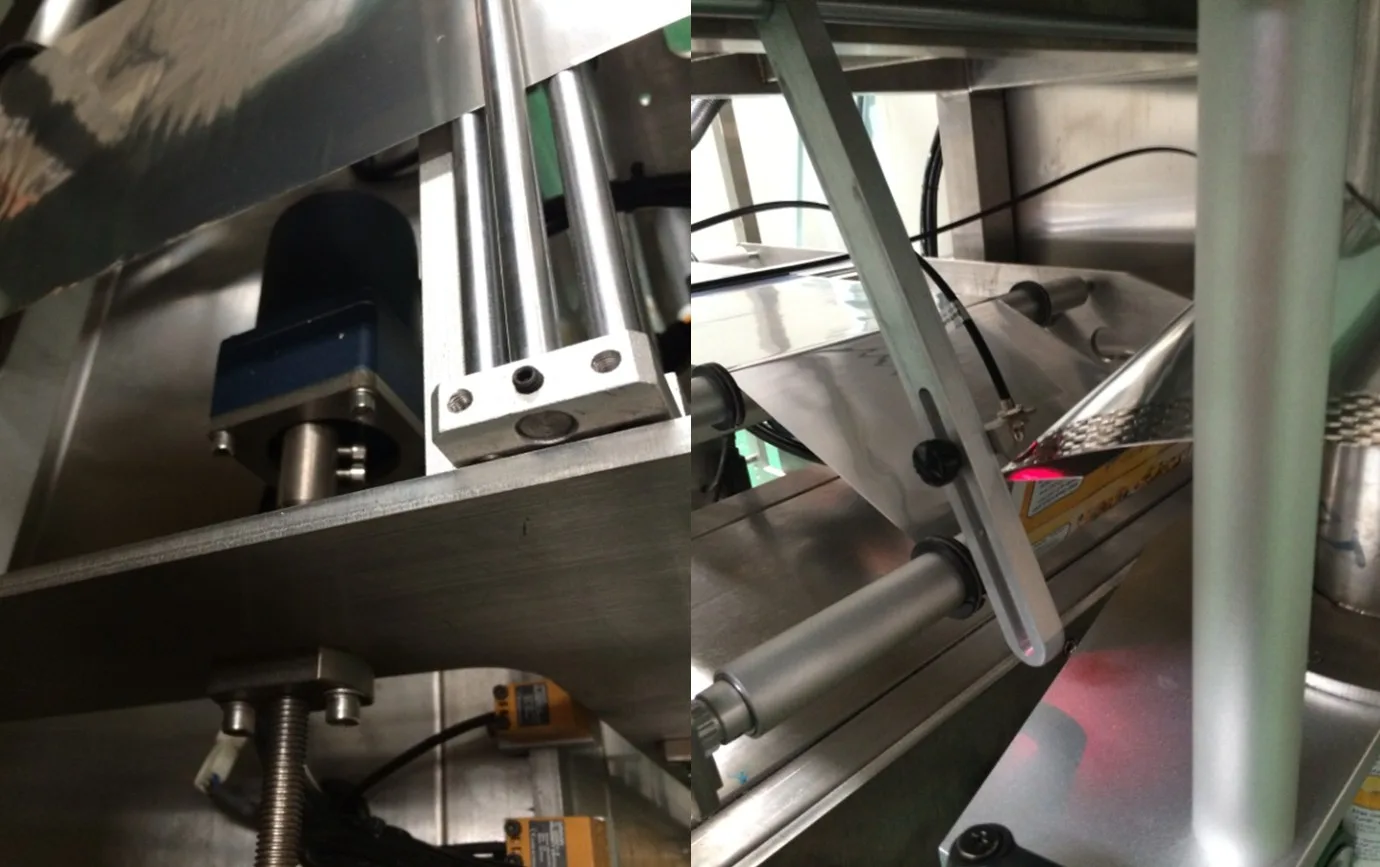

Film stretching motor and pneumatic axis

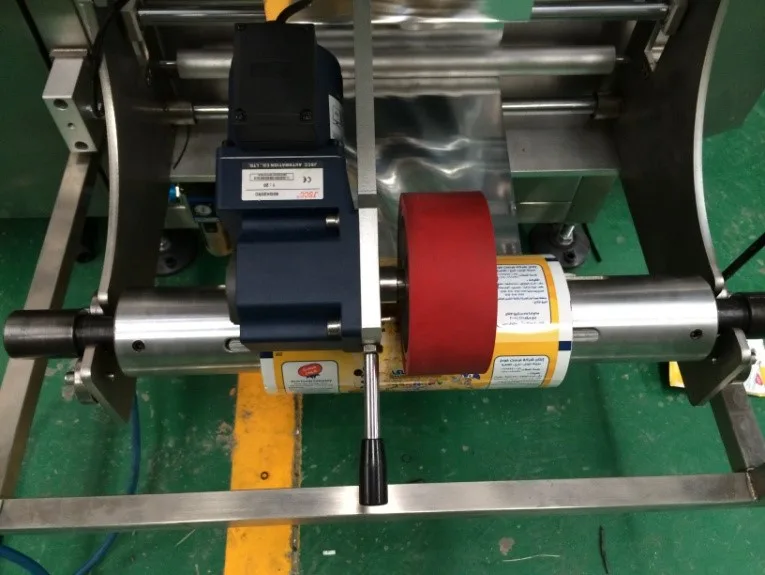

Deviation correction motor can automatically correct the film deviation
Technical parameter

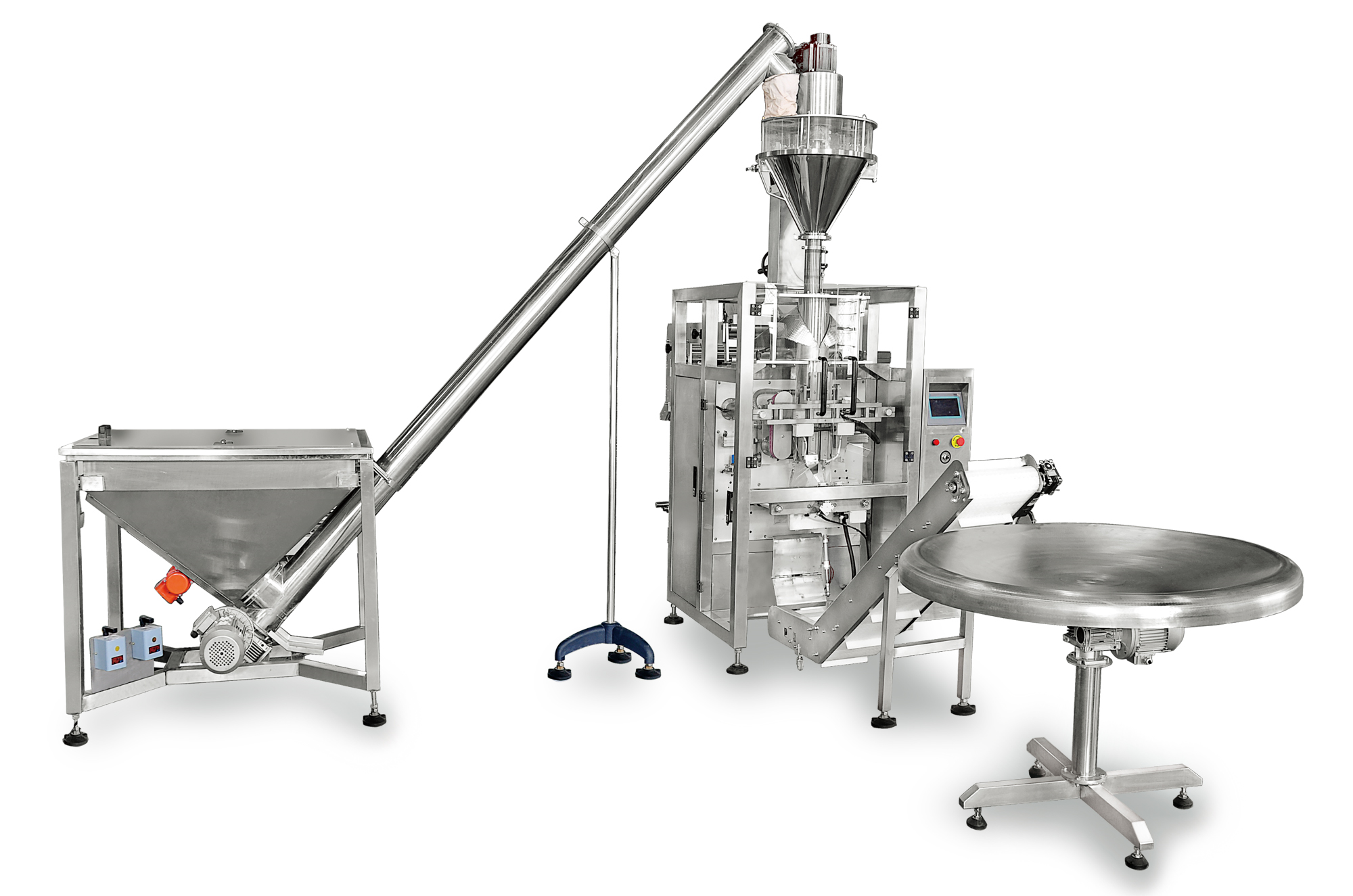

Application: Suitable for packaging many different kinds of products; such as detergent powder, spice powder, milk powder and other tiny granule products
Technical features:
- 1PLC servo control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
- 2Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
- 3Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
- 4External film releasing mechanism: simpler and easier installation of packing film.
- 5Adjustment of bag deviation just needed to be controlled by the touch screen.
