Name: Inclined packing machine - Julies Technology
Brand: Packing machine

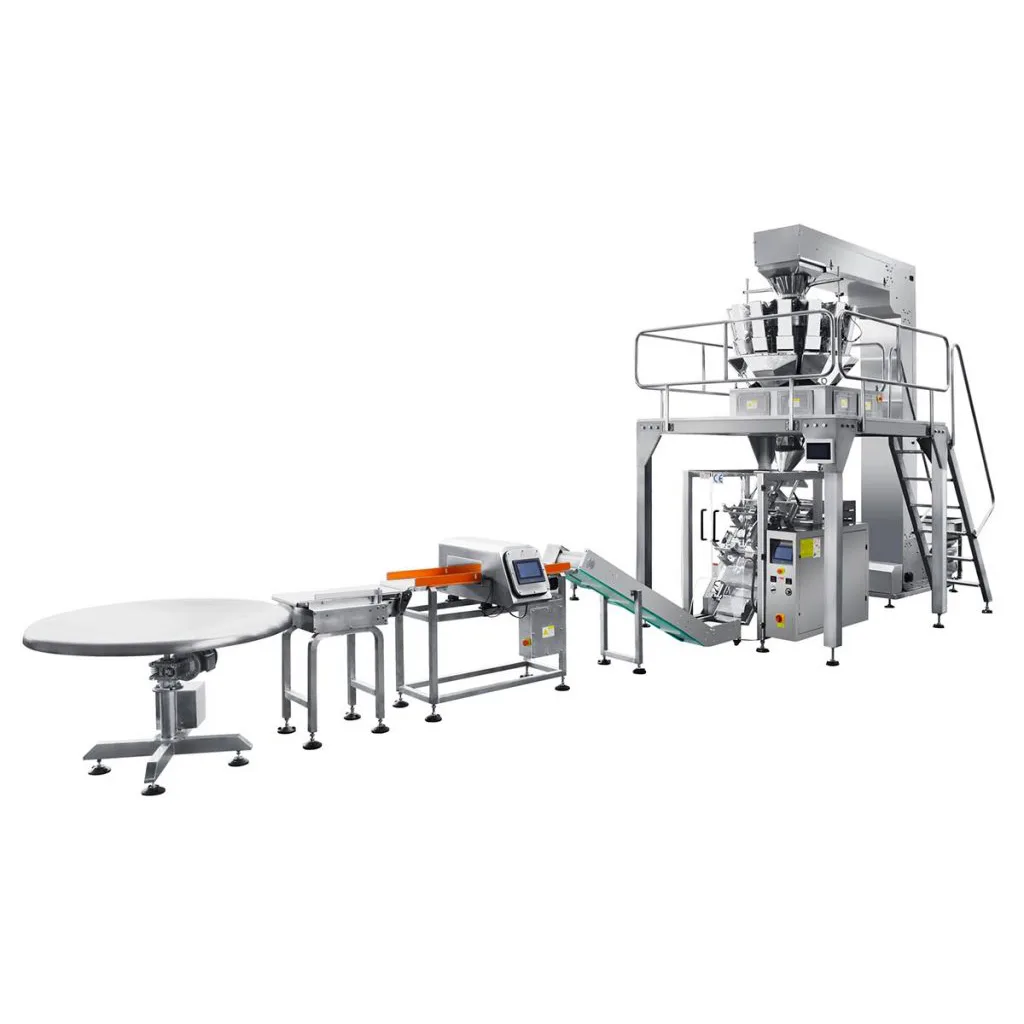

Inclined packing machine

Fully automated operation, integrated packaging process, more efficient and simple.
Electrical accessories are all from well-known brands at home and abroad, with long life and high stability.
The mechanical parts are of top quality, with low loss and durability.
The film-laying structure is simple and has an automatic correction function.
Using advanced software, it is simple to operate, highly customized, and works more efficiently with high-quality hardware.

Get Quote

Chat with WhatsApp

inclined packing machine

Application:

Package fragile products. They are well integrated with weighing and metering systems for fragile products such as potatoes, fruits, baked goods, biscuits, pastries and other general fragile products.

Packing heavy products. The inclined packing process can effectively reduce the impact of packing items on the bag, which is usually used to pack live fish, frozen poultry, seafood and heavy hardware.

Technical Parameters:

Type	JLS-520S
Bag length	80-370mm(L)
Bag width	60-250mm(W)
Max width of roll film	520mm
Packing speed	30-50bags/min
Air consumption	0.65mpa
Gas consumption	0.4m³/min
Power voltage	220VAC/60HZ
Power	3KW
Dimension	(L)1500mm(W)1170mm(H)1500mm
Deadweight of machine	800Kg

Technology Characteristic:

1
Full-automatic weigh-form-fill-seal type, efficient and simple to use
2
Use famous brand electric and pneumatic components, stable and long life circle.
3
Use superior mechanical components, reduce the wear out loss
4
Easy to install film, auto correcting the excursion of the film.
5
Apply advanced operating system, easy to use and reprogramable.
6
The heat transfer printer & automatic film correction motor and anti-static device are for optional
7
Stainless steel frame
8
Servo driven film pulling system
9
Photo sensor for automatic tracking eye marks.
10
Hot printer and film feeding system synchronous working together.
