Name: Home use Freeze Dryer - Julies Technology
Brand: Freeze Dryer

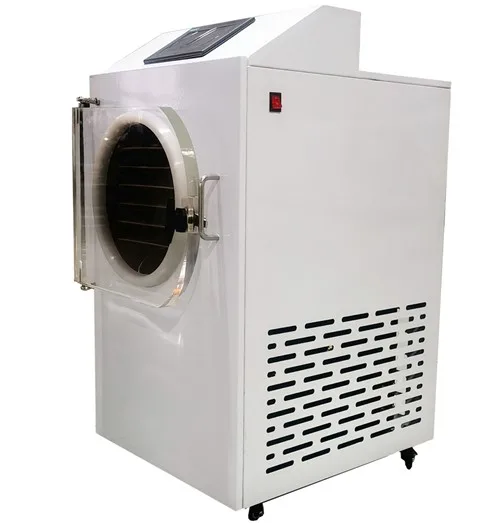

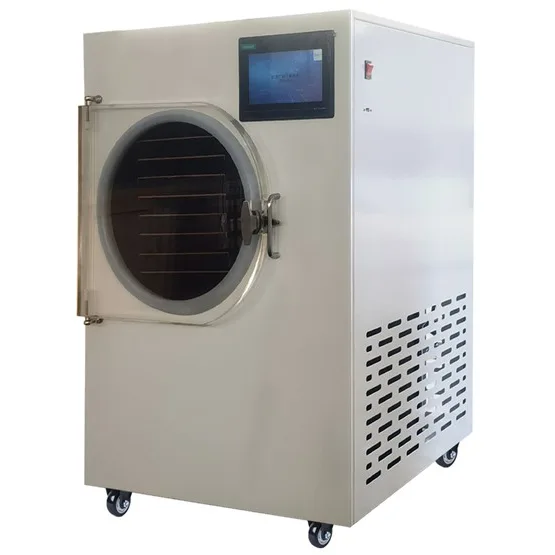

Home use Freeze Dryer

The temperature of the inner wall of the refrigeration cold trap is uniform, and the professional gas diversion technology has a good water trapping effect.
The compressor adopts internationally renowned brands such as Danfoss, Panasonic, Emerson, and China first tier brands, single machine mixed or dual machine environment-friendly refrigeration technology.
The product pre-freezing function is configured, quick freezing and drying integrated machine,and there is no need to equip with an ultra-low temperature refrigerator or treat with liquid nitrogen.
7-inch color LCD touch screen, easy to understand, human-computer friendly interaction interface, screen locking function, mobile phone remote control function can be selected for payment.
The main interface of the touch screen can display the cold trap temperature, vacuum degree, sample temperature, running time and other parameters, which is simple and convenient to operate, and can be set for mis-operation authority management.
It has the functions of viewing, exporting and deleting, and freeze-drying data is automatically saved to prevent data loss. It supports USB data export.
Built in maintenance reminds the user to maintain the instrument on time.
It can have vacuum alarm function.
It is equipped with stainless steel anti-corrosion vacuum connecting pipe and standard vacuum fittings.
It can have the function of electric heating to defrost.

Model	FD04	FD04X	FD06	FD06X
Configuration level	Standard	Improved	Standard	Improved
shelf area	0.4㎡	0.48㎡	0.62㎡	0.75㎡
Capacity	4-5kg	4-6kg	6-7kg	6-9kg
Trays size	20040020mm	20040020mm	20040020mm, 25050020mm	25050020mm
Tray quantity	4pcs	5pcs	7pcs or 4pcs	5pcs
Water catch capacity	4kg	5kg	6kg	7kg
Condenser temperature	-45℃	-60℃	-45℃	-60℃
Vacuum(No-load)	≤15pa	≤5pa	≤15pa	≤5pa
Configuration part	One host(Freeze dryer),One set of vacuum pump and accessories
Power	1200w,220V,50HZ	1380w,220V,50HZ Remote monitoring function	2300w,220V,50HZ	2700w,220V,50HZ Remote monitoring function
Size(mm) and Weight	600500800，110kg	600500800，130kg	760640980,140kg	760640980，160kg
Environment	Ambient temperature ≤ 30 ℃

Note
