Features
Fully automated operation, integrated packaging process, more efficient and simple.
Electrical accessories are all from well-known brands at home and abroad, with long life and high stability.
The mechanical parts are of top quality, with low loss and durability.
The film-laying structure is simple and has an automatic correction function.
Using advanced software, it is simple to operate, highly customized, and works more efficiently with high-quality hardware.Application
It is mainly suitable for automatic quantitative packaging machine of bulk and block materials, such as: various puffed foods, crispy rice balls, pistachios, candies, biscuits, frozen meatballs, dumplings, glutinous rice balls, frozen steamed buns, pet food, small hardware, medicinal materials wait.

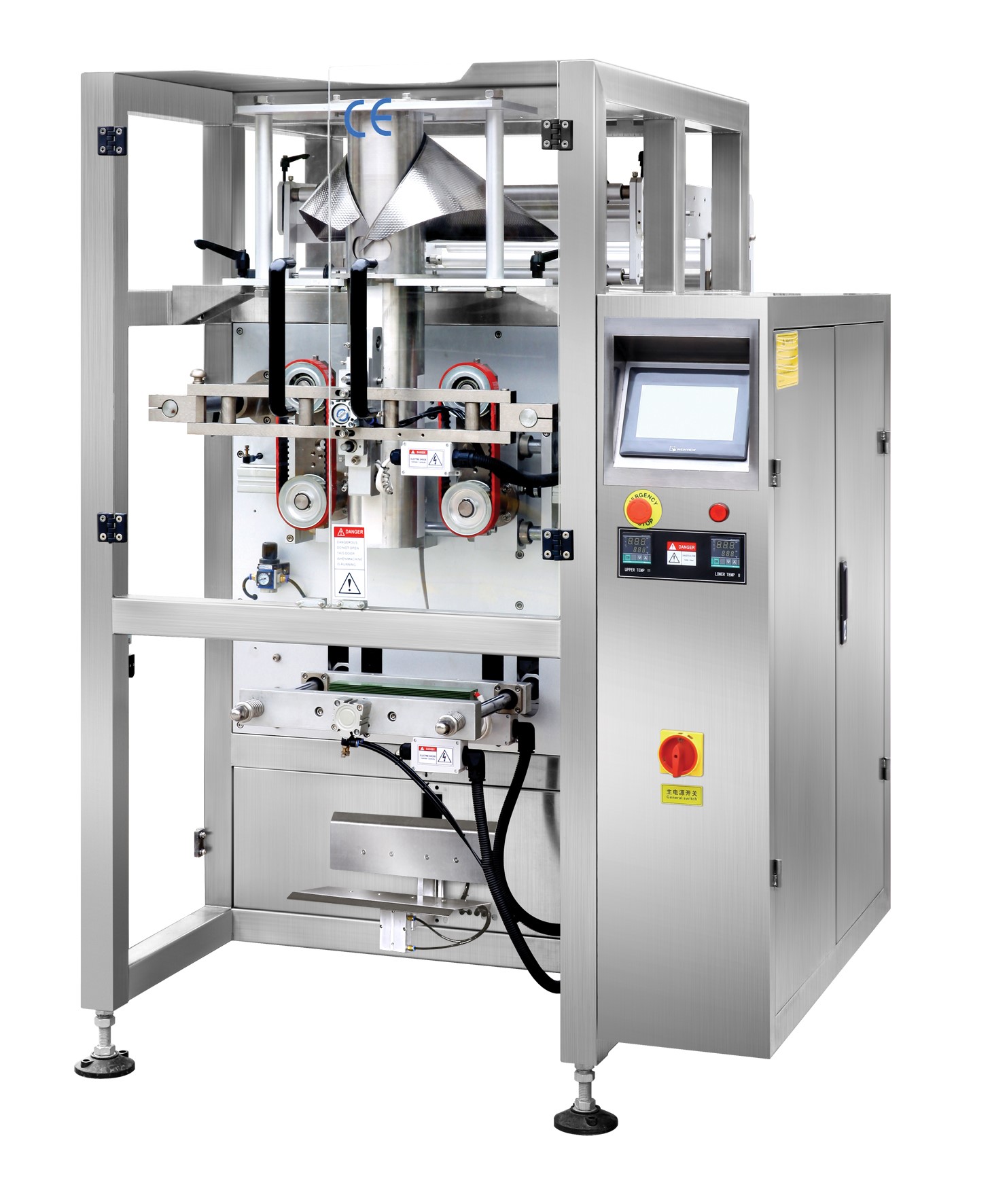

JLS-720W Automatic vertical packing machine
Mechanical details

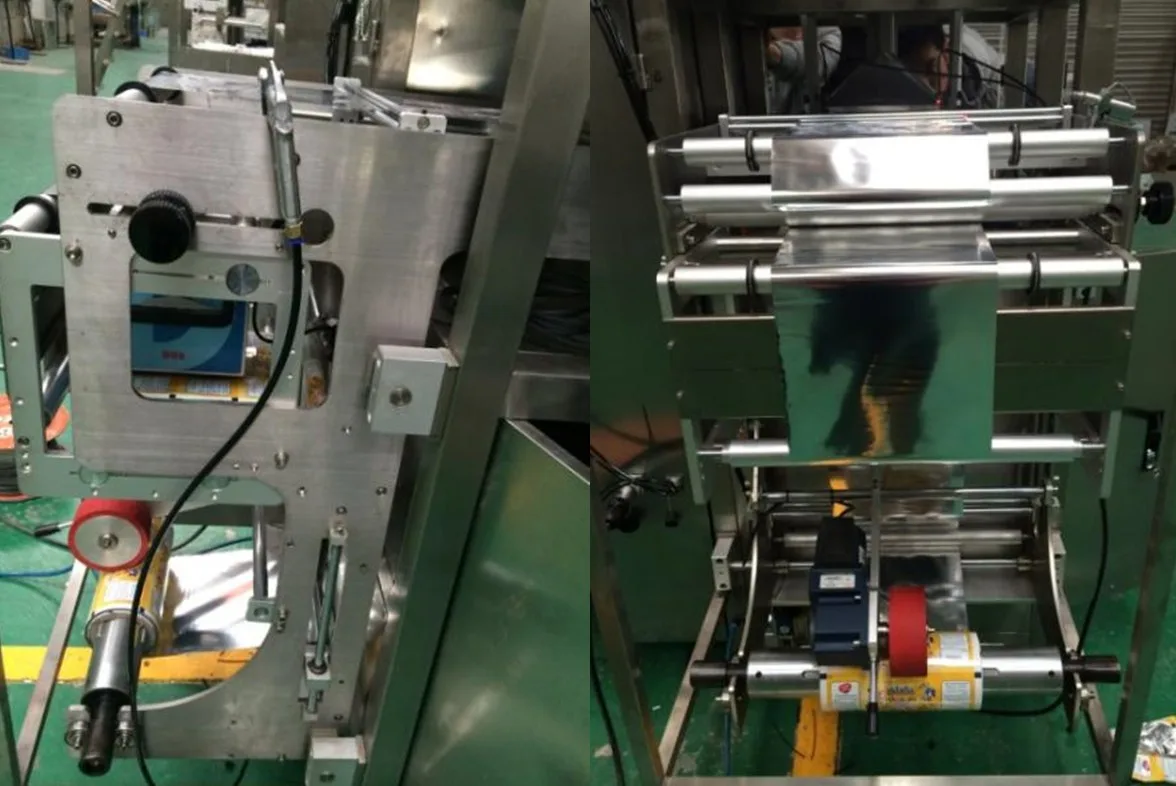

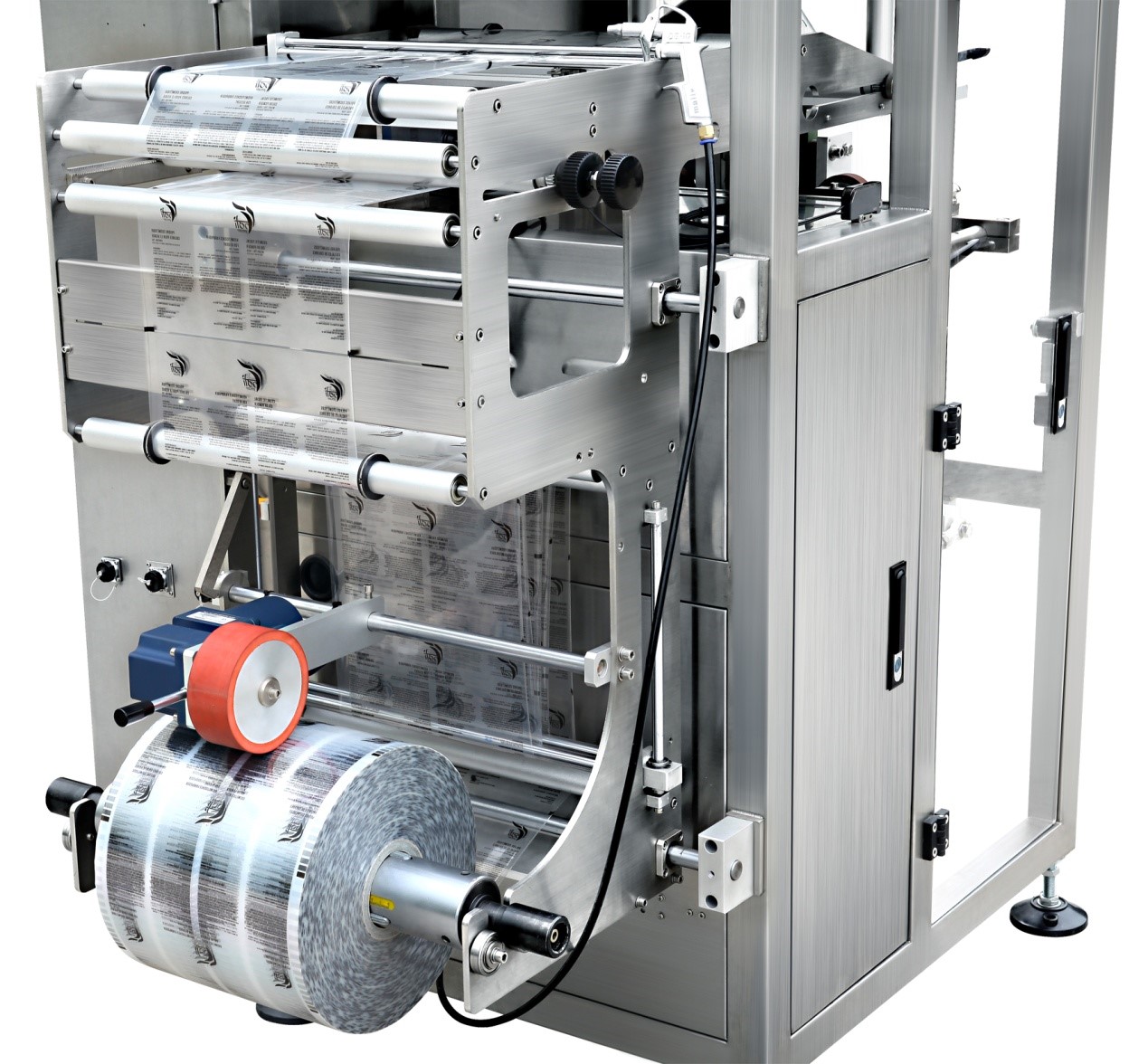

Film stretching structure is made in stainless steel

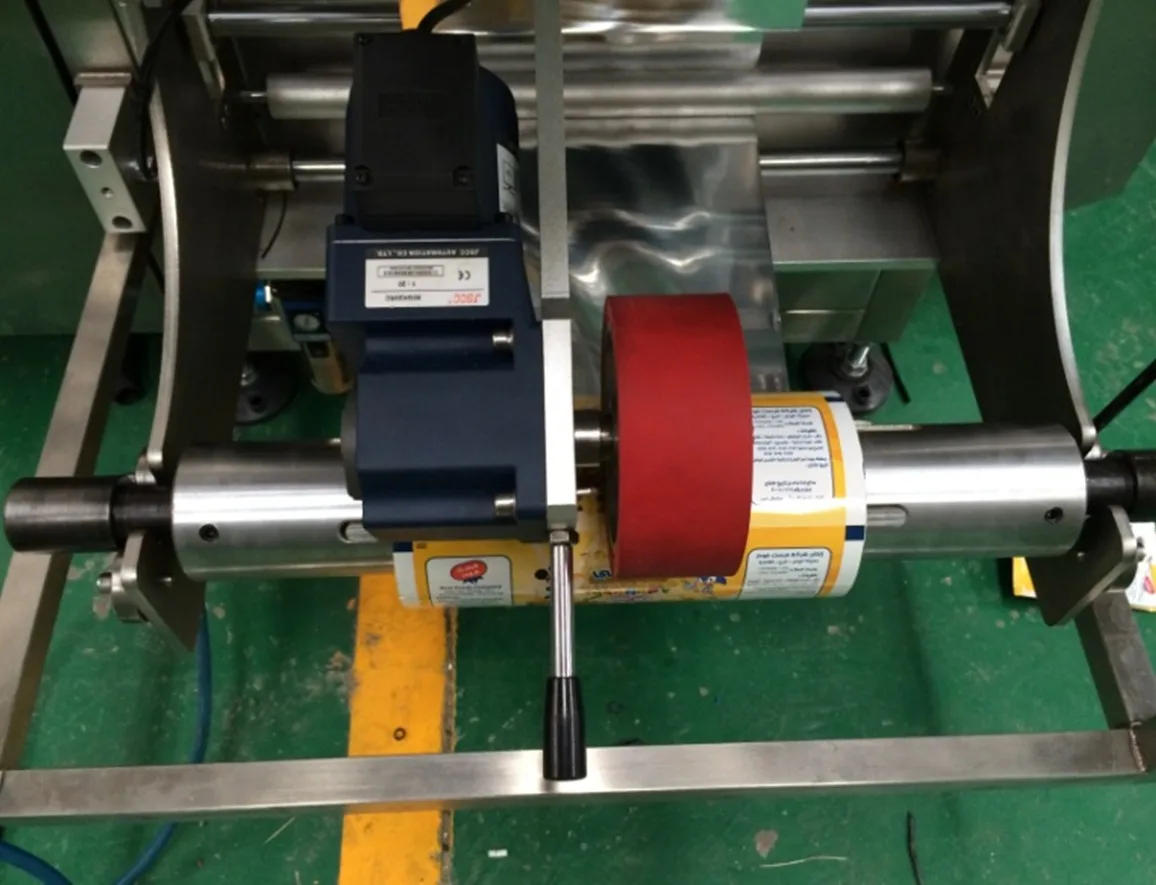

Film stretching motor and pneumatic axis
Deviation correction motor can automatically correct the film deviation
Technical features
- 1Adopt internationally renowned brand PLC, with reliable performance and durability.
- 2This machine can complete bagging, measuring, filling, sealing, coding, bag cutting and counting at one time.
- 3The servo motor synchronous wheel pulls the film, the film pulling resistance is small, the bag is beautiful and beautiful, and the belt is not easy to wear.
- 4Adopt upper clamping and lower supporting devices to effectively prevent bag breakage.
- 5Suitable for composite film, aluminum film, and aluminized film materials.
Technical parameter
Model | JLS-720W with four side heat sealing |
|---|---|
Bag length | 100-400 mm, adjusted on touch screen |
Front bag width | 60-220 mm |
Side bag width | 40-120mm |
Sealing width | 5-10mm |
Film width | Max. 720mm |
Packing speed | 10-30 bags/min |
Air consumption | 0.4m³/min 0.65Mpa |
Voltage | 220V/50/60Hz |
Power | 6KW |
Dimension | 1700×1470×1700mm LxwXH |
Weight | 950Kg |
Package dimension | 4.3 m³ |
